HD-10132

Plug HD 10132

Plug HD 10132 is a robust industrial plug designed for reliable power connections in demanding environments. Manufactured by Holard, this 5-pin plug operates at 380–440V with a current rating of 32A. Constructed from high-quality plastic, it features an IP44 protection rating, ensuring resistance against dust and splashing water. The plug is suitable for various industrial applications, including manufacturing plants, workshops, and construction sites. Its durable design and compliance with international standards make Plug HD 10132 an ideal choice for secure and efficient electrical connections in industrial settings.

Technical Specification

Ampere16 A
Poles3 P
Voltage230 V
Clock Position6 H
Hertz50-60 Hz
Connection TechnologyScrew Terminals
ContactStandard
Protection TypeIP 67

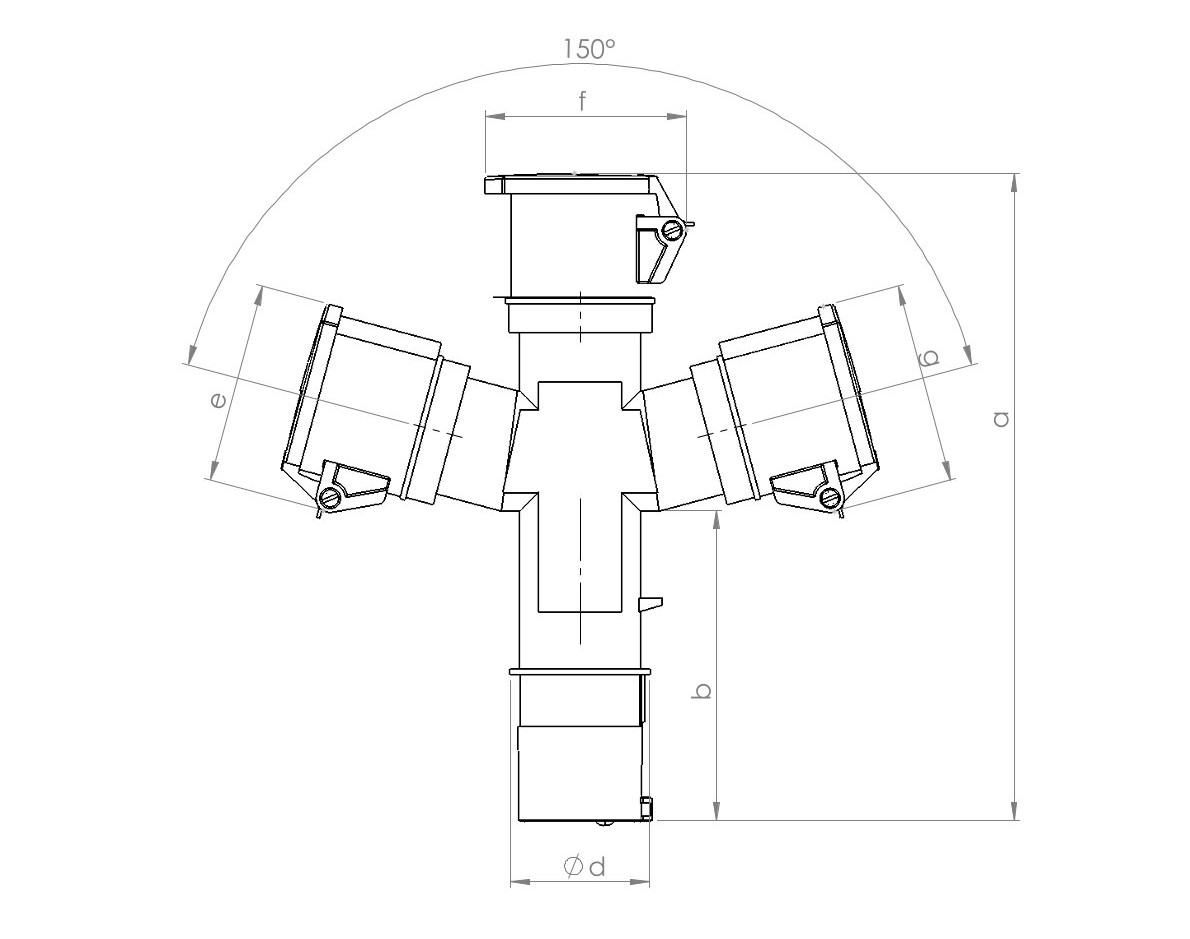

Drawing

HD-10132(D)
Code HD 10132
Rated Current (A)32
Poles 5
Earth Contact Position6 H
Dimension (MM)A246.2
B110
C150
D71.5
E79.2
F79.2
G79.2
Conductor Crossectional Area (MM9) Min To Max1.5 - 2.5
