Plug HD 1366
Plug HD 1366 is a durable industrial panel-mounting straight socket designed for reliable electrical connections in demanding environments. Manufactured by Holard, this 3-pin socket operates at 220–240V with a current rating of 16A. Constructed from high-quality plastic, it offers robust performance and longevity. The socket features an IP44 protection rating, ensuring resistance against dust and splashing water, making it suitable for various industrial applications.
- Screw Terminals
- Straight
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |
| Flange | 75x75 MM |
| Fixing Hole | 60x60 MM |

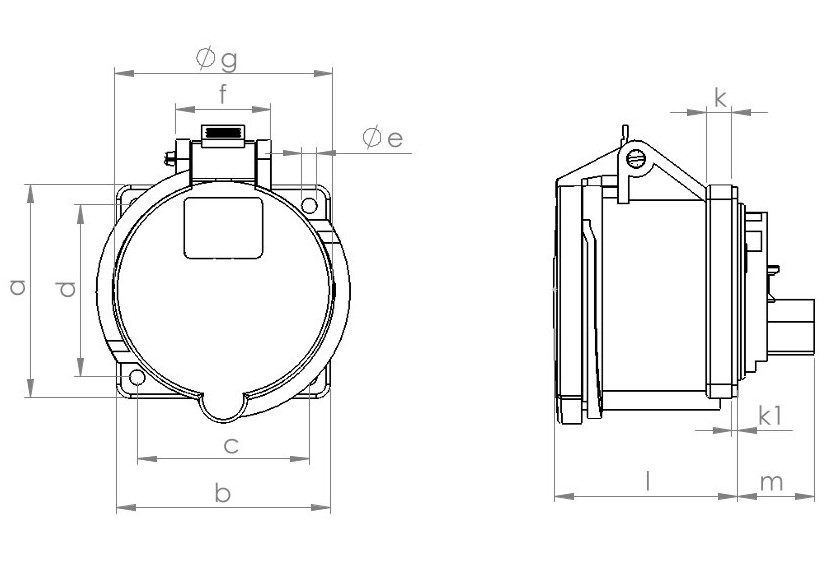

Drawing
| Code | HD 1366 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 75 |
| B | 75 | |
| C | 60 | |
| D | 60 | |
| E | 5.5 | |
| F | 34 | |
| G | 56 | |
| I | 52 | |
| M | 30.5 | |
| K | 7.5 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 1.5 - 2.5 |
