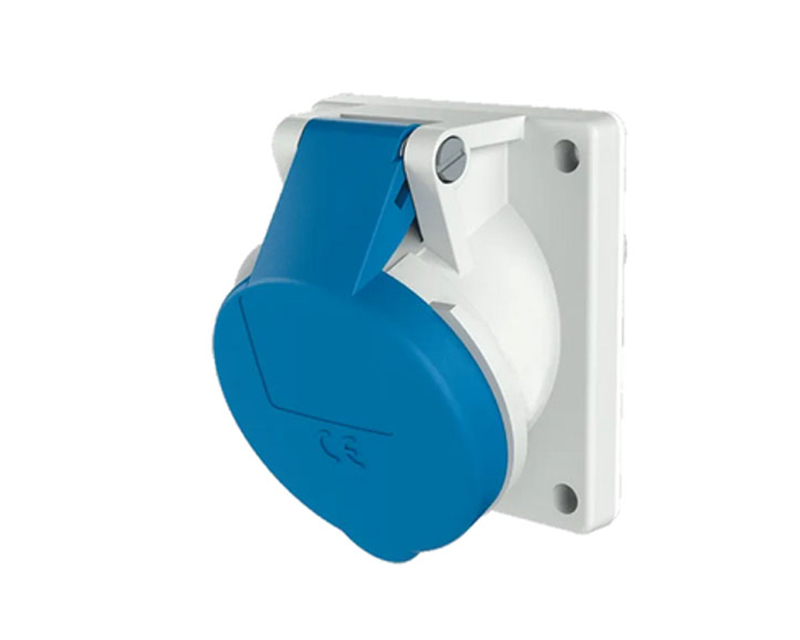

Plug HD 1463
Plug HD 1463 is a robust industrial connector designed for reliable power distribution in demanding environments. Manufactured by Holard, this 3-pin plug operates at 220–240V with a current rating of 16A. Constructed from high-quality plastic, it features an IP44 protection rating, ensuring resistance against dust and splashing water. The plug is suitable for various industrial applications, including manufacturing plants, workshops, and construction sites.
- Screw Terminals
- 20° Inclination
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |
| Flange | 73x65 MM |
| Fixing Hole | 63x60 MM |

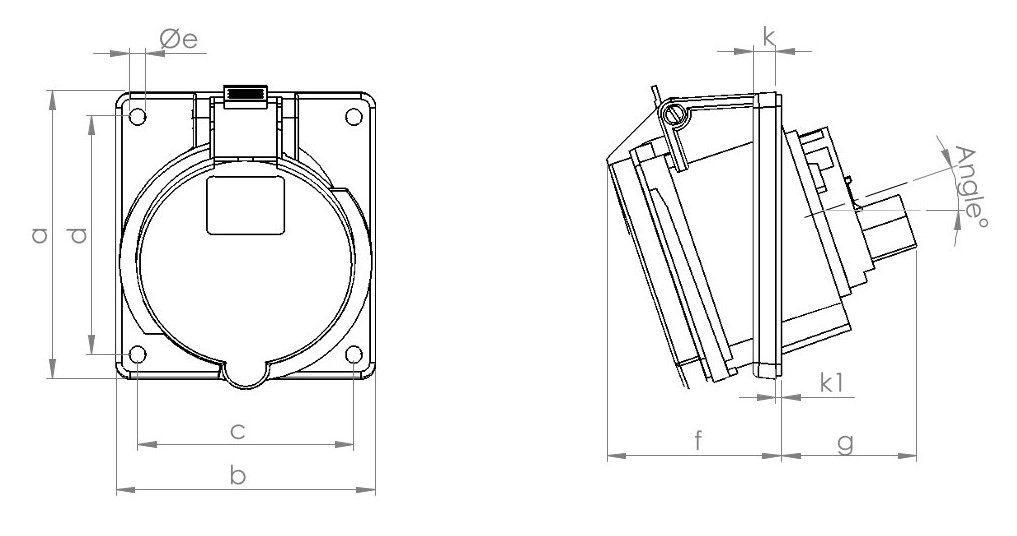

Drawing
| Code | HD 1463 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 73 |
| B | 65 | |
| C | 63 | |
| D | 60 | |
| E | 5.5 | |
| F | 50 | |
| G | 45 | |
| I | 56 | |
| M | 20 | |
| K | 7.5 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 1.5 - 2.5 |
