Plug HD 1475

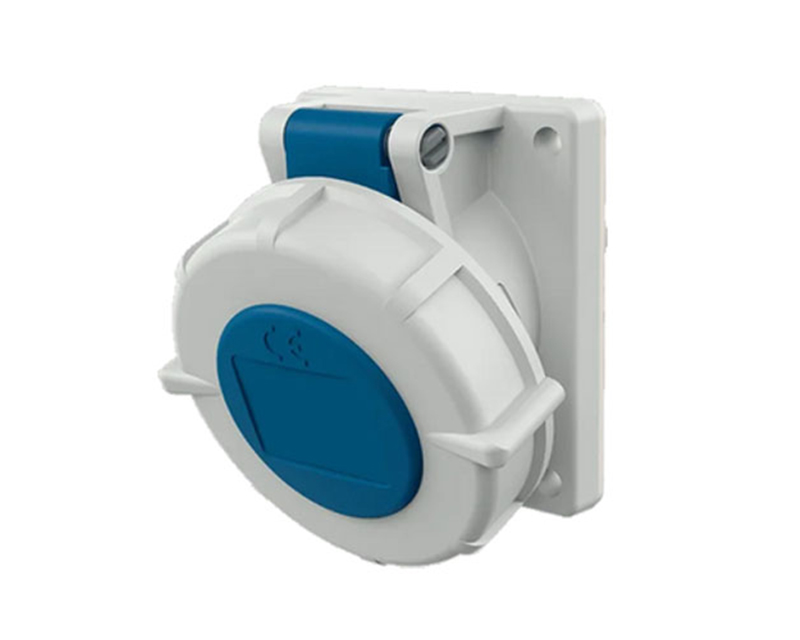

Plug HD 1475 is a high-performance panel-mounted angled socket designed for industrial applications. Manufactured by Holard, this socket features a 20° inclination and screw terminals for secure connections. Operating at 230 V with a current rating of 16 A, it ensures reliable power distribution. The socket offers an IP67 protection rating, making it dust-tight and water-resistant, suitable for demanding environments. Optional 32 A receptacles can be fitted with auxiliary contacts for enhanced functionality.
- Screw Terminals
- 20° Inclination
- 32 A Receptacles Optional Fitted With Auxiliary Contact.
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |
| Flange | 73x65 MM |
| Fixing Hole | 63x60 MM |

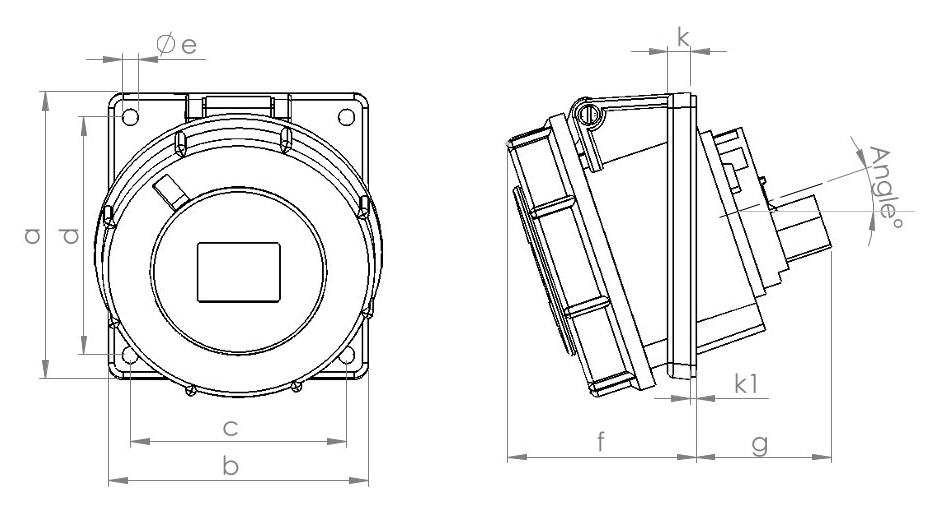

Drawing
| Code | HD 1475 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 73 |
| B | 65 | |
| C | 53 | |
| D | 60 | |
| E | 5.5 | |
| F | 51 | |
| G | 45 | |
| I | 20 | |
| M | 20 | |
| K | 7.5 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 1.5 - 2.5 |
