Plug HD 1500
Plug HD 1500 is a high-performance industrial plug designed for reliable power connections in demanding environments. Manufactured by Holard, this 5-pin plug operates at 380–440V with a current rating of 32A. Constructed from durable plastic, it features an IP44 protection rating, ensuring resistance against dust and splashing water. The plug is suitable for various industrial applications, including manufacturing plants, workshops, and construction sites.
- Screw Terminals
- 20° Inclination
- Receptacles Optional Fitted With Auxiliary Contact.
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |
| Flange | 101.1x91.5 MM |
| Fixing Hole | 76x84 MM |

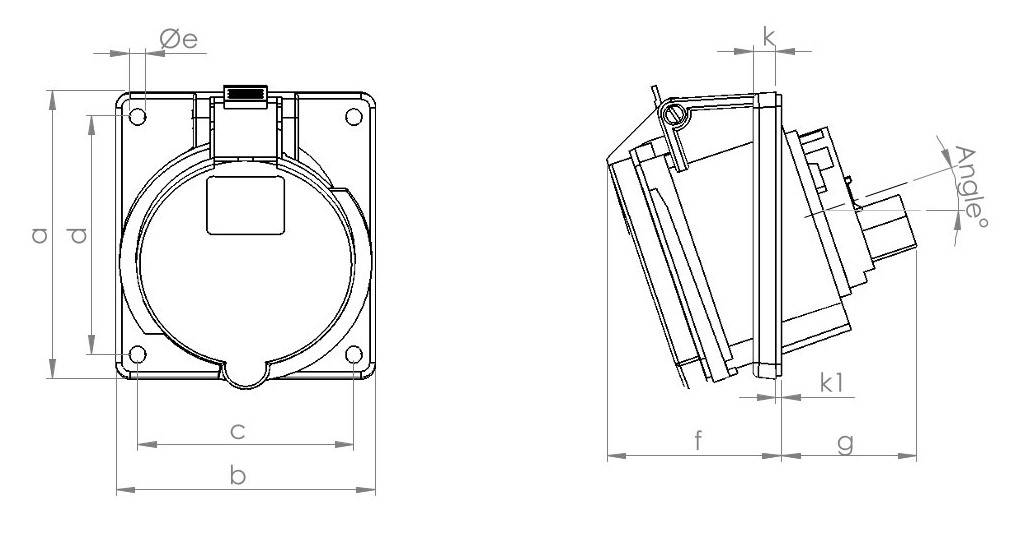

Drawing
| Code | HD 1500 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 101.1 |
| B | 91.5 | |
| C | 76 | |
| D | 84 | |
| E | 5.5 | |
| F | 63.5 | |
| G | 50 | |
| I | 20 | |
| M | 20 | |
| K | 9 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 4 - 6 |
