Plug HD 1551
Plug HD 1551 is a high-quality industrial panel-mounted angled socket designed for reliable power distribution in demanding environments. Manufactured by Holard, this 5-pin socket operates at 380–440V with a current rating of 32A. Constructed from durable plastic, it features an IP67 protection rating, ensuring resistance against dust and water ingress. The socket is suitable for various industrial applications, including manufacturing plants, workshops, and construction sites. Its robust design and compliance with international standards make Plug HD 1551 an ideal choice for secure and efficient electrical connections in industrial settings.
- Screw Terminals
- 20° Inclination
- 32 A Receptacles Optional Fitted With Auxiliary Contact.
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |
| Flange | 101.1x91.5 MM |
| Fixing Hole | 76x84 MM |

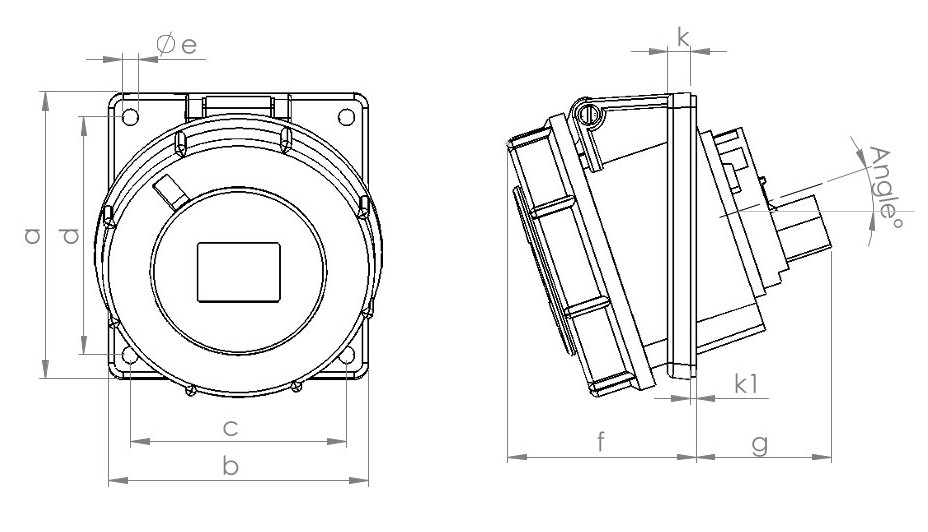

Drawing
| Code | HD 1551 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 101.5 |
| B | 91.5 | |
| C | 76 | |
| D | 84 | |
| E | 5.5 | |
| F | 49 | |
| G | 50 | |
| I | 20 | |
| M | 20 | |
| K | 9 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 1.5 - 2.5 |
