Plug HD 248
The Industrial Plug HD 248 is a robust and reliable heavy-duty industrial plug designed to deliver safe and efficient power connections in demanding industrial environments. Engineered with high-grade materials and precision locking mechanisms, this plug ensures long-term durability, thermal resistance, and excellent conductivity.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |

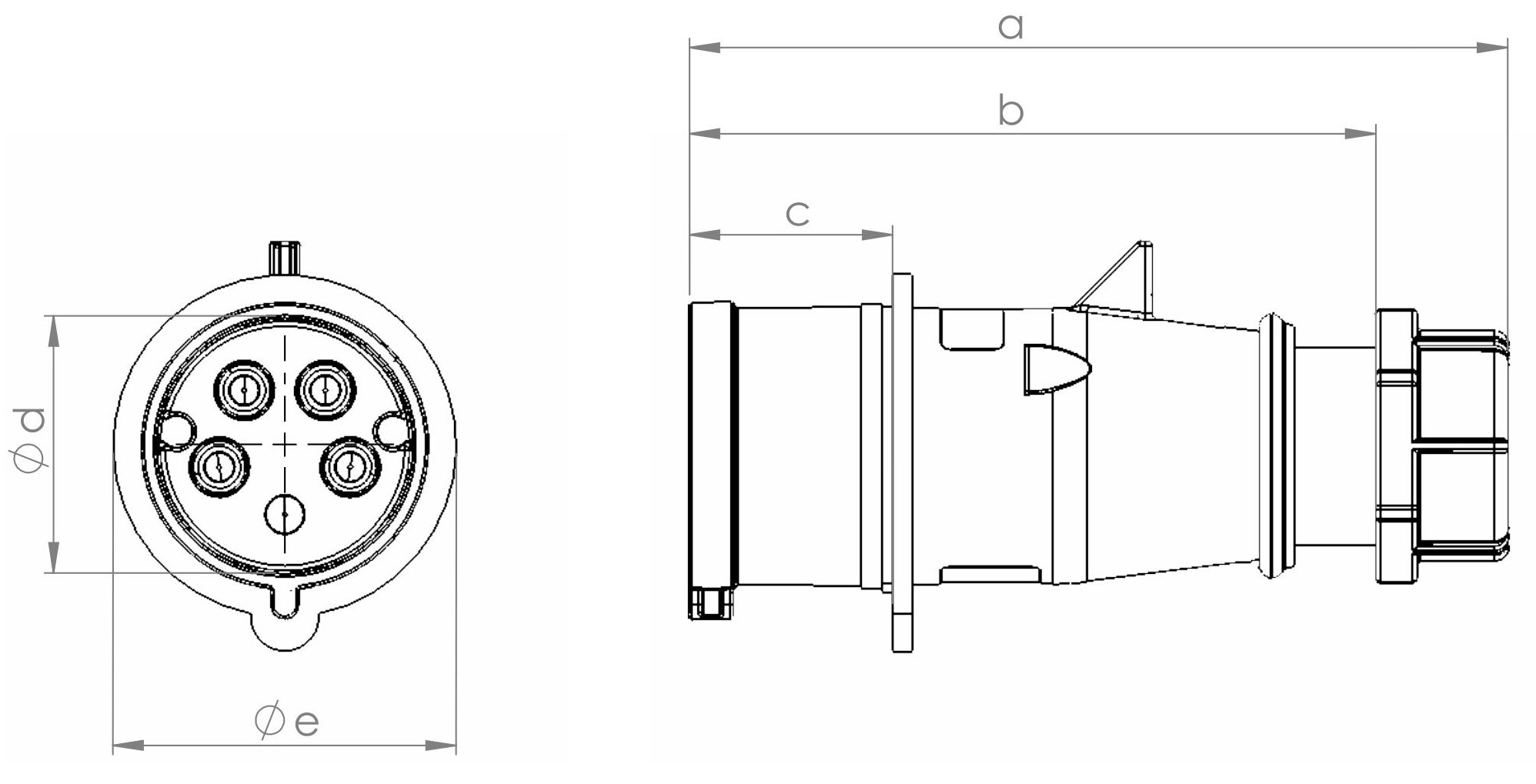

Drawing
| Code | HD 248 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 136 |
| B | 113 | |
| C | 36 | |
| D | 38 | |
| E | 53.6 | |
| Conductor Crossectional Area (MM3) Min To Max | 1.5 - 2.5 |
