Plug HD 278
Plug HD 278 is an advanced smart plug engineered for seamless connectivity, safety, and energy efficiency. It supports scheduling, energy usage tracking, and overload protection, making it ideal for smart homes and modern workplaces.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |

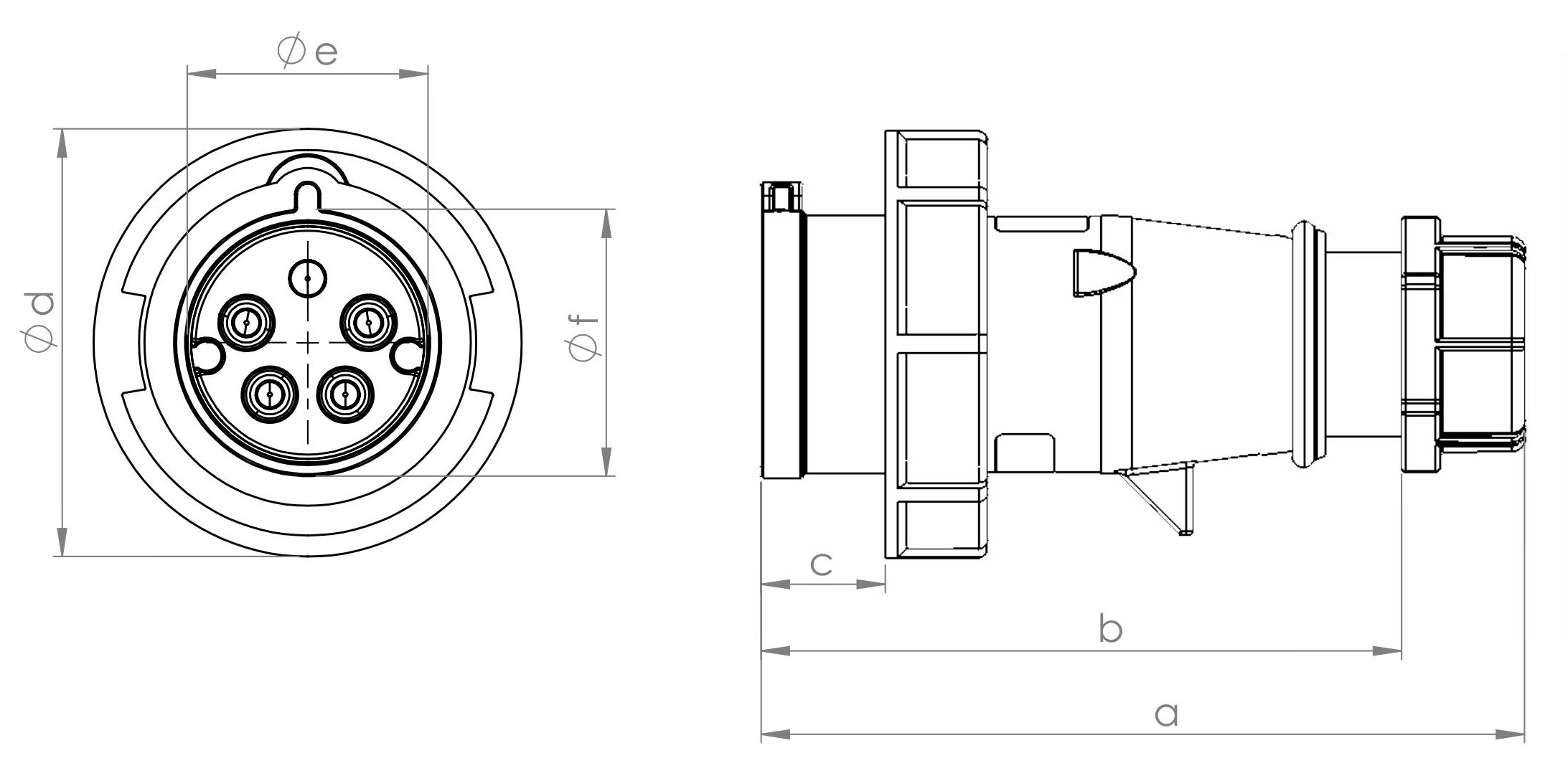

Drawing
| Code | HD 278 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 136 |
| B | 113 | |
| C | 25 | |
| D | 70 | |
| E | 38.5 | |
| F | 42.5 | |
| Conductor Crossectional Area (MM3) Min To Max | 1.5 - 2.7 |
