Plug HD 300
Plug HD 300 is a next-generation smart plug designed for ultimate control, safety, and energy savings. It offers advanced HD remote management, allowing users to control appliances anytime, anywhere using a smartphone app. With built-in energy monitoring, scheduling, and surge protection, it ensures both convenience and safety in daily use.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |

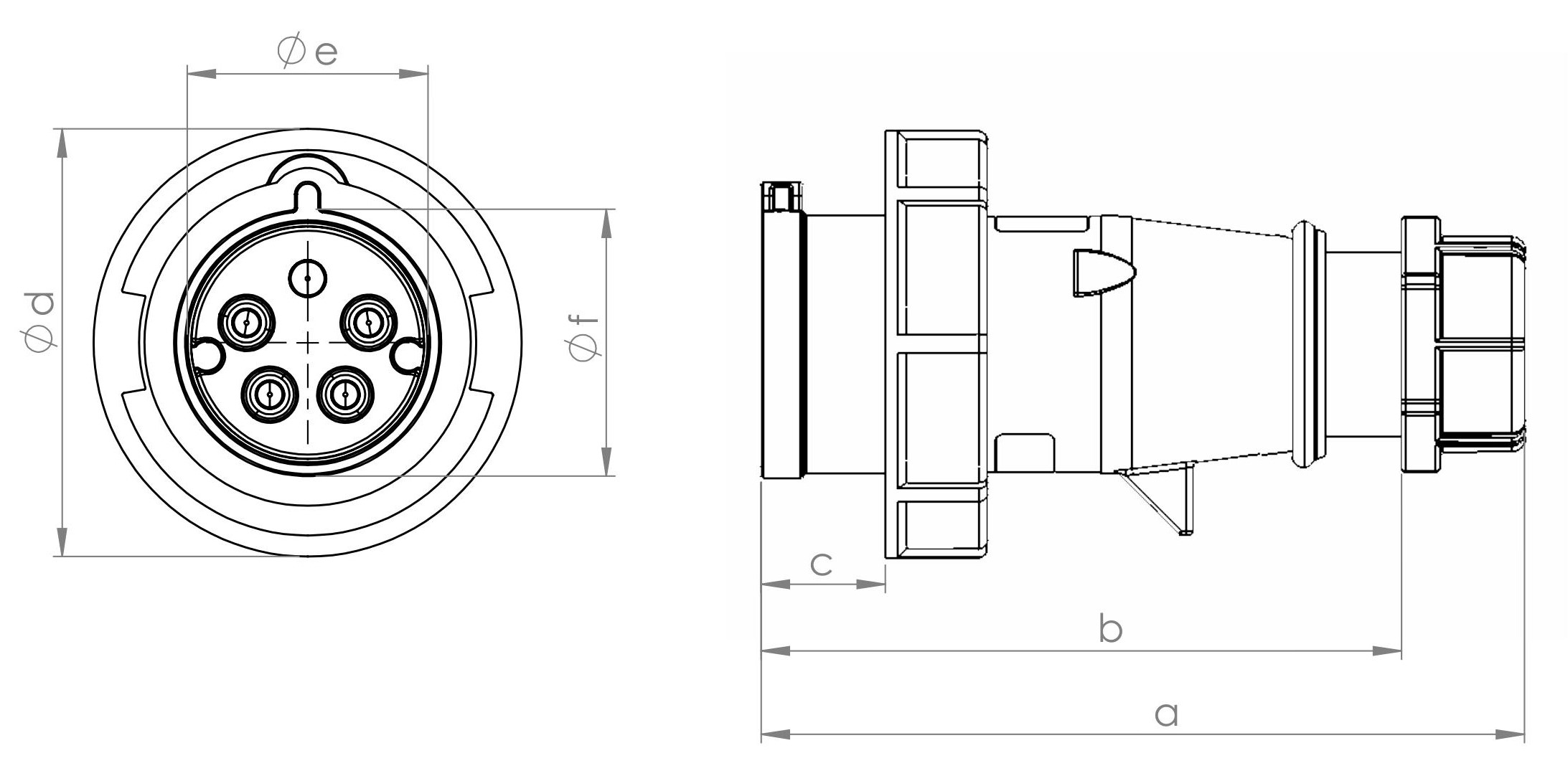

Drawing
| Code | HD 300 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 166.5 |
| B | 138 | |
| C | 34.5 | |
| D | 100.5 | |
| E | 56.3 | |
| F | 63 | |
| Conductor Crossectional Area (MM3) Min To Max | 4 - 8 |
