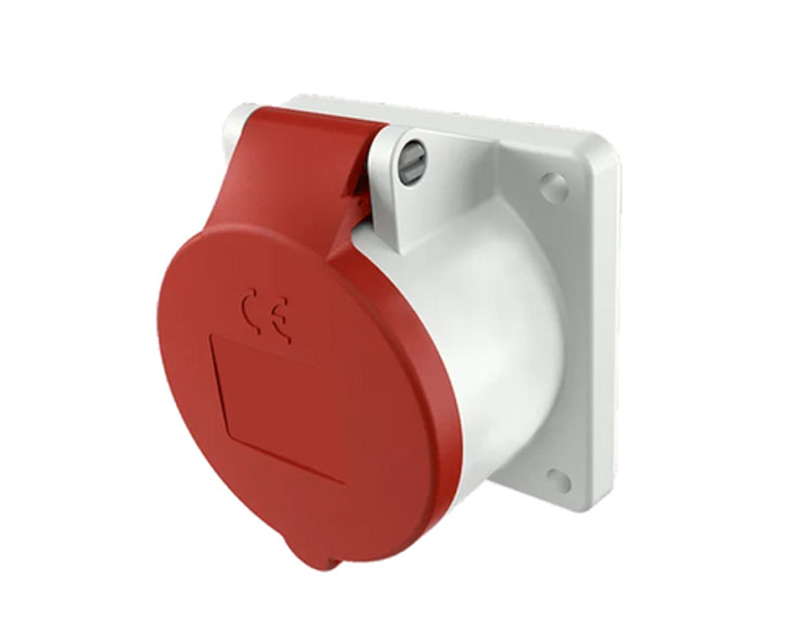

Plug HD 3451
Plug HD 3451 is a robust industrial socket designed for reliable power distribution in demanding environments. Manufactured by Holard, this 5-pin socket operates at 380–440V with a current rating of 32A. Constructed from high-quality plastic, it features an IP44 protection rating, ensuring resistance against dust and splashing water.
- Screw Terminals
- Straight
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |
| Flange | 75x75 MM |
| Fixing Hole | 60x60 MM |

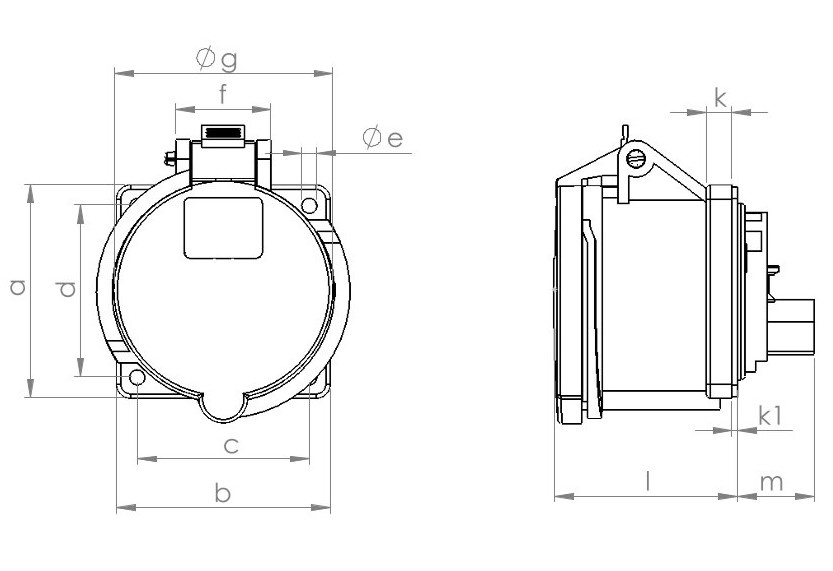

Drawing
| Code | HD 3451 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 75 |
| B | 75 | |
| C | 60 | |
| D | 60 | |
| E | 5.5 | |
| F | 34 | |
| G | 101 | |
| I | 70 | |
| M | 29 | |
| K | 9 | |
| K1 | 2 | |
| Conductor Crossectional Area (MM9) Min To Max | 4 - 6 |
