Plug HD 4
Plug HD 4 is a high-performance smart plug designed for modern energy management and device automation. With HD control capabilities, it allows users to remotely monitor and operate connected appliances using a smartphone or tablet. The plug supports real-time energy usage tracking, scheduling, and overload protection for enhanced safety and convenience.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |

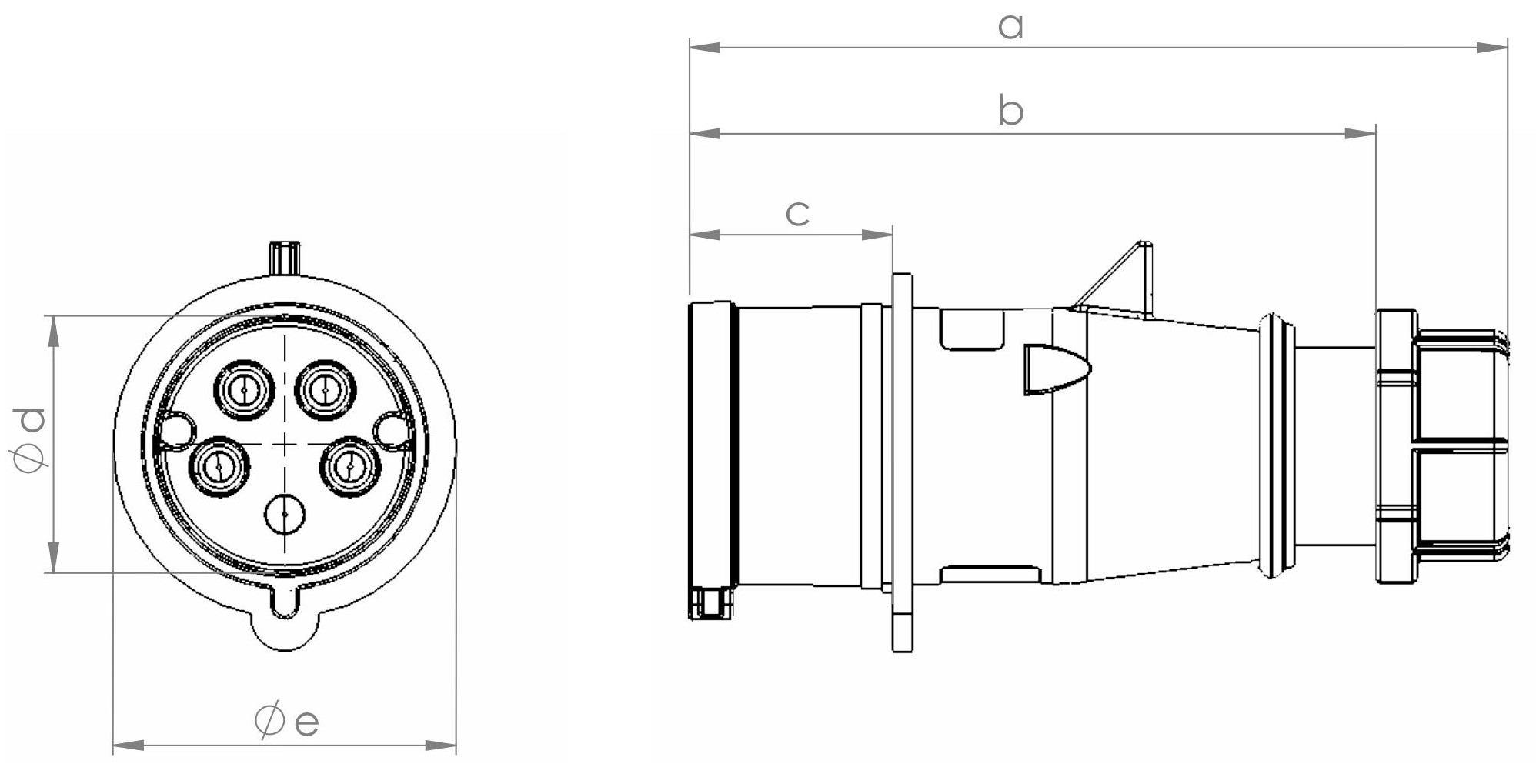

Drawing
| Code | HD 4 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 173 |
| B | 144.5 | |
| C | 45.5 | |
| D | 56.5 | |
| E | 75.5 | |
| Conductor Crossectional Area (MM3) Min To Max | 4 - 7 |
