Plug HD 540
Plug HD 540 is a high-performance industrial connector designed for demanding environments. Manufactured by Holard, this robust plug offers reliable electrical connections with a current rating of 16A and a voltage of 230V. Featuring an IP67 protection class, it is dust-tight and resistant to water, making it suitable for harsh outdoor conditions and industrial settings.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 16 A |
|---|---|
| Poles | 3 P |
| Voltage | 230 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |

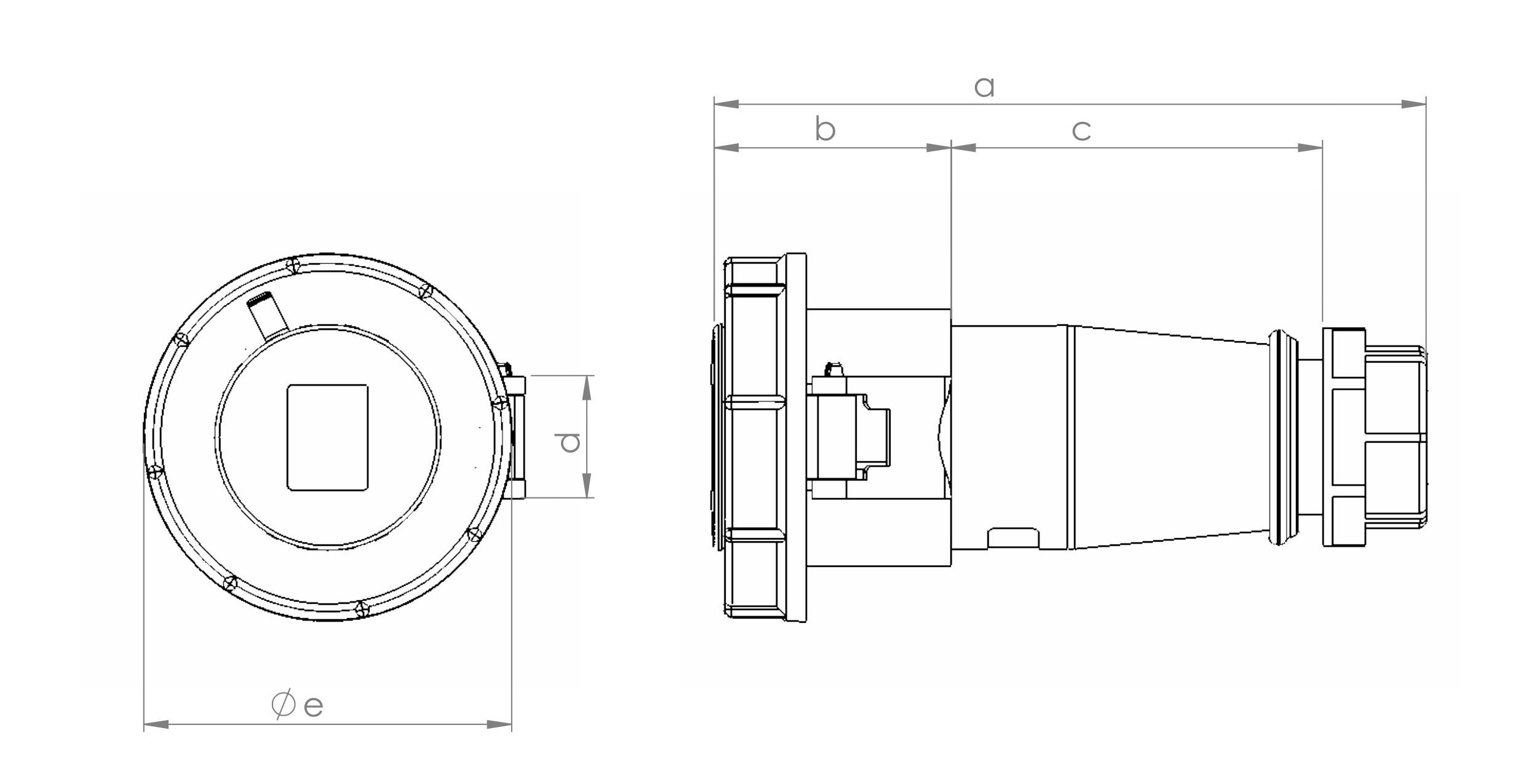

Drawing
| Code | HD 510 | |
|---|---|---|
| Rated Current (A) | 16 | |
| Poles | 3 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 158 |
| B | 55 | |
| C | 80 | |
| D | 34.35 | |
| E | 69 | |
| Conductor Crossectional Area (MM3) Min To Max | 1.5 - 2.5 |
