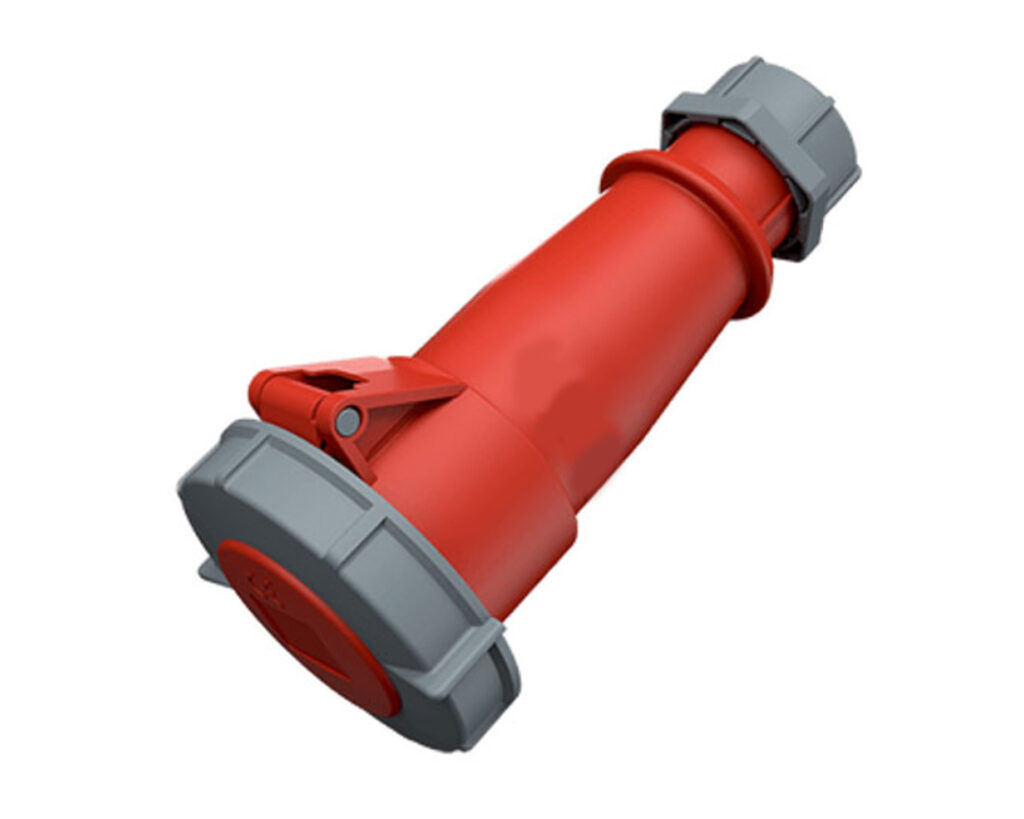

Plug HD 562
Plug HD 562 is a high-performance industrial connector designed for demanding environments. Manufactured by Holard, this robust plug offers reliable electrical connections with a current rating of 32A and a voltage range of 380–440V. Featuring an IP67 protection class, it is dust-tight and resistant to water, making it suitable for harsh outdoor conditions and industrial settings.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 67 |

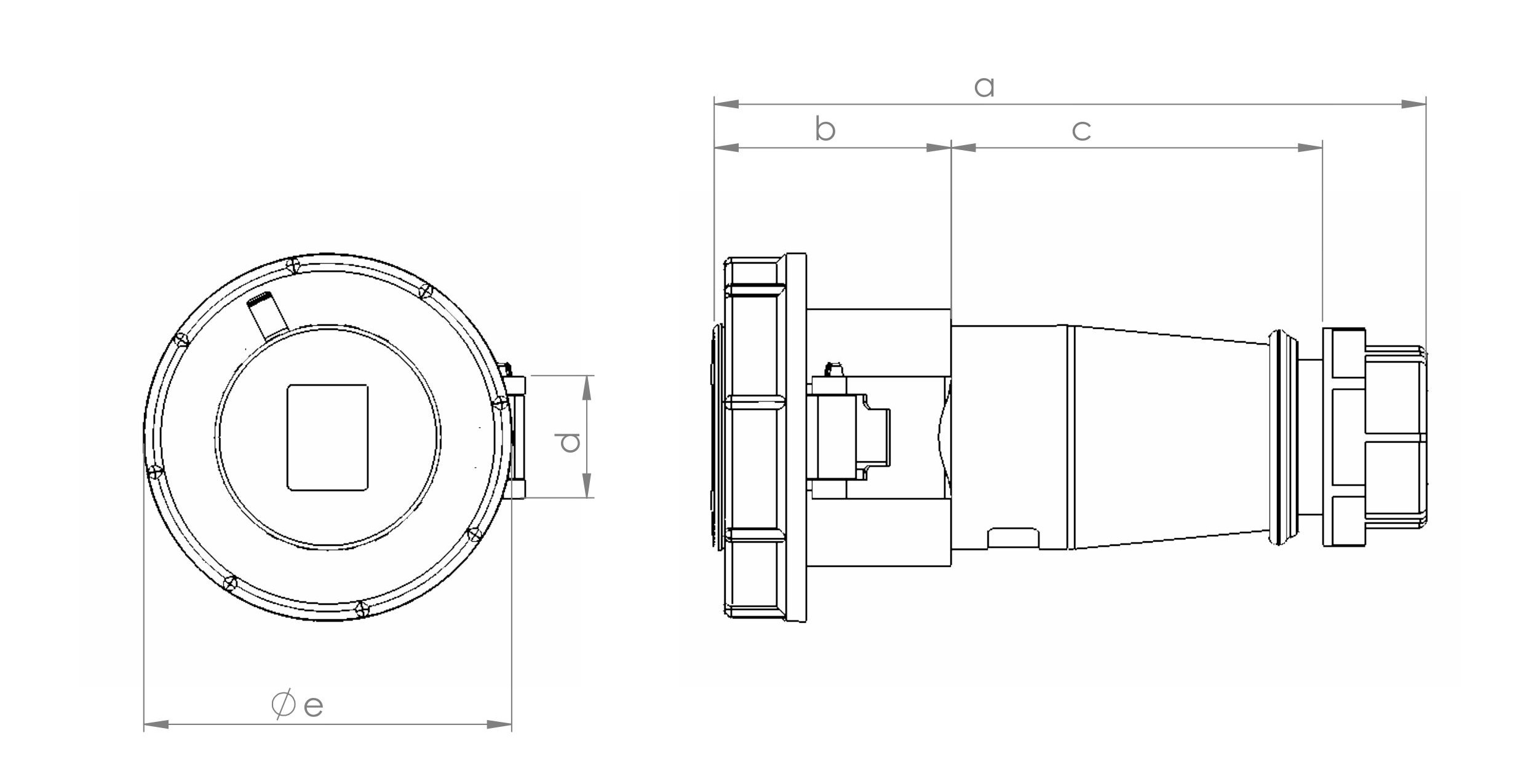

Drawing
| Code | HD 562 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 202 |
| B | 67 | |
| C | 107.5 | |
| D | 33.6 | |
| E | 101.5 | |
| Conductor Crossectional Area (MM3) Min To Max | 4 - 6 |
