Plug HD 6
Plug HD 6 is a compact, smart plug solution designed for efficient power control and everyday convenience. It enables remote operation of appliances via a mobile app, offering features like scheduling, timer settings, and energy monitoring. With reliable HD connectivity and built-in surge protection, Plug HD 6 ensures safety and performance. Its sleek, space-saving design fits perfectly in any home or office environment.
- Screw Terminals
- Single Part Body
- Cable Gland And Sealing
- Strain Relief And Protection Against Kinking
Technical Specification
| Ampere | 32 A |
|---|---|
| Poles | 5 P |
| Voltage | 400 V |
| Clock Position | 6 H |
| Hertz | 50-60 Hz |
| Connection Technology | Screw Terminals |
| Contact | Standard |
| Protection Type | IP 44 |

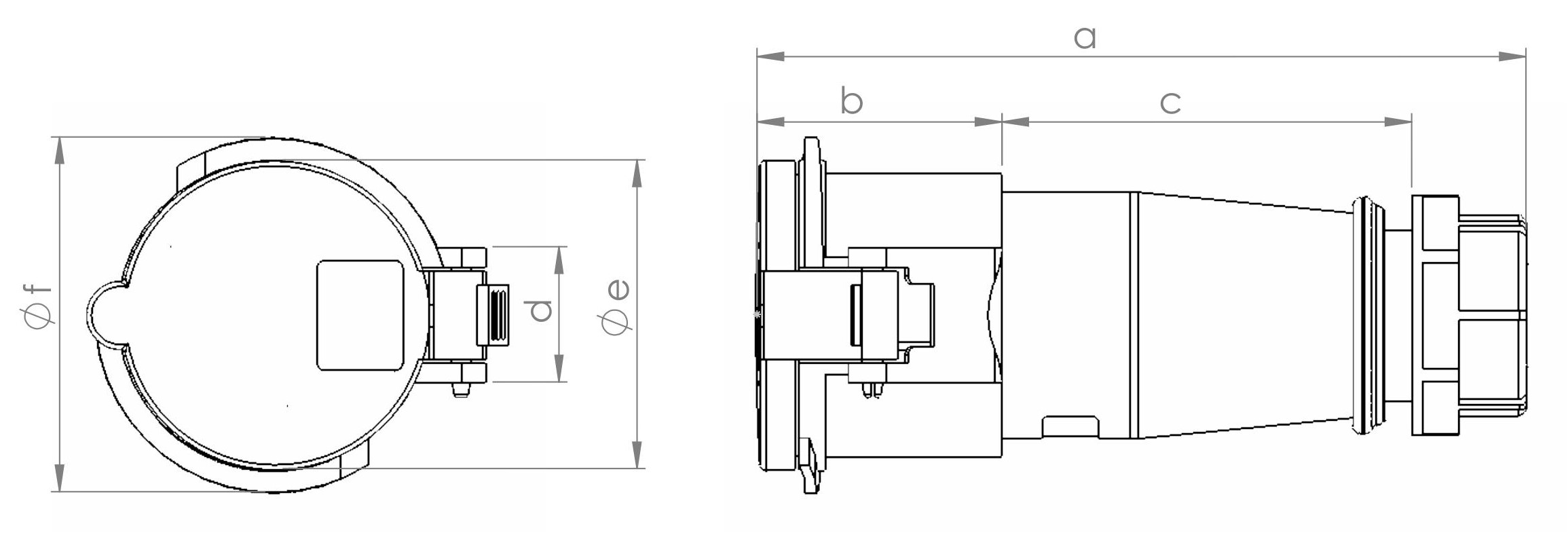

Drawing
| Code | HD 6 | |
|---|---|---|
| Rated Current (A) | 32 | |
| Poles | 5 | |
| Earth Contact Position | 6 H | |
| Dimension (MM) | A | 194 |
| B | 60.5 | |
| C | 104 | |
| D | 33.5 | |
| E | 77 | |
| F | 88.5 | |
| Conductor Crossectional Area (MM3) Min To Max | 4 - 8 |
